Piping
Design
3D piping layout, stress analysis, and isometric extraction — all from the same SP3D model that drives our fabrication. Zero translation between design and shop floor.
Every pipe knows where it's going
Piping design at Jasmino starts in the same 3D model as the process and equipment design — SP3D. Piping routes are designed with full awareness of equipment nozzle locations, structural steel, cable trays, and access requirements.

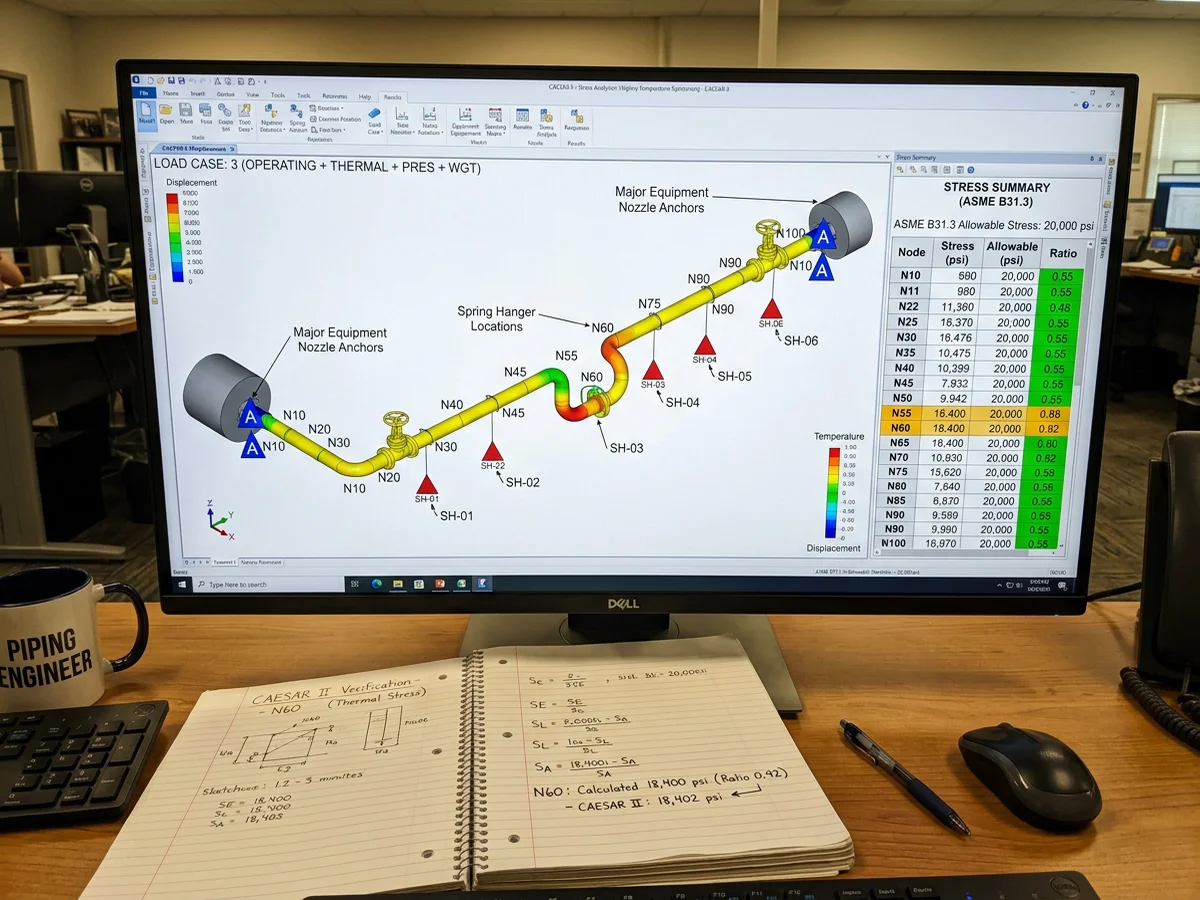

Our piping stress engineers use CAESAR II for static and dynamic analysis, ensuring every line meets code requirements for thermal expansion, weight, wind, and seismic loading.

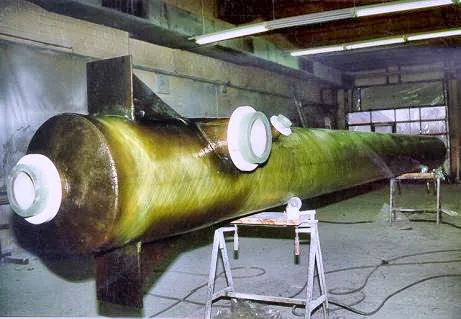

Because we fabricate our own pipe spools, the isometrics extracted from our 3D model go directly to our shop floor. Material take-offs are auto-generated — no spreadsheet errors, no manual re-entry.
The same model that generates the isometric also generates the shop cutting list. That's integration.
SP3D to Shop Floor
Complete piping engineering in-house
From routing through stress analysis to fabrication support.
3D Piping Layout
Intelligent 3D piping routing with automatic clash detection against equipment, structural, electrical, and instrumentation models.
Stress Analysis
Thermal expansion, sustained loads, occasional loads (wind/seismic), and dynamic analysis for vibration-sensitive lines.
Isometric Extraction
Isometric drawings auto-extracted from the 3D model with complete BOM, weld counts, and fabrication notes. Direct to shop floor.
Support Design
Pipe support design coordinated with stress analysis results. Spring selection, guide spacing, and anchor load calculations.

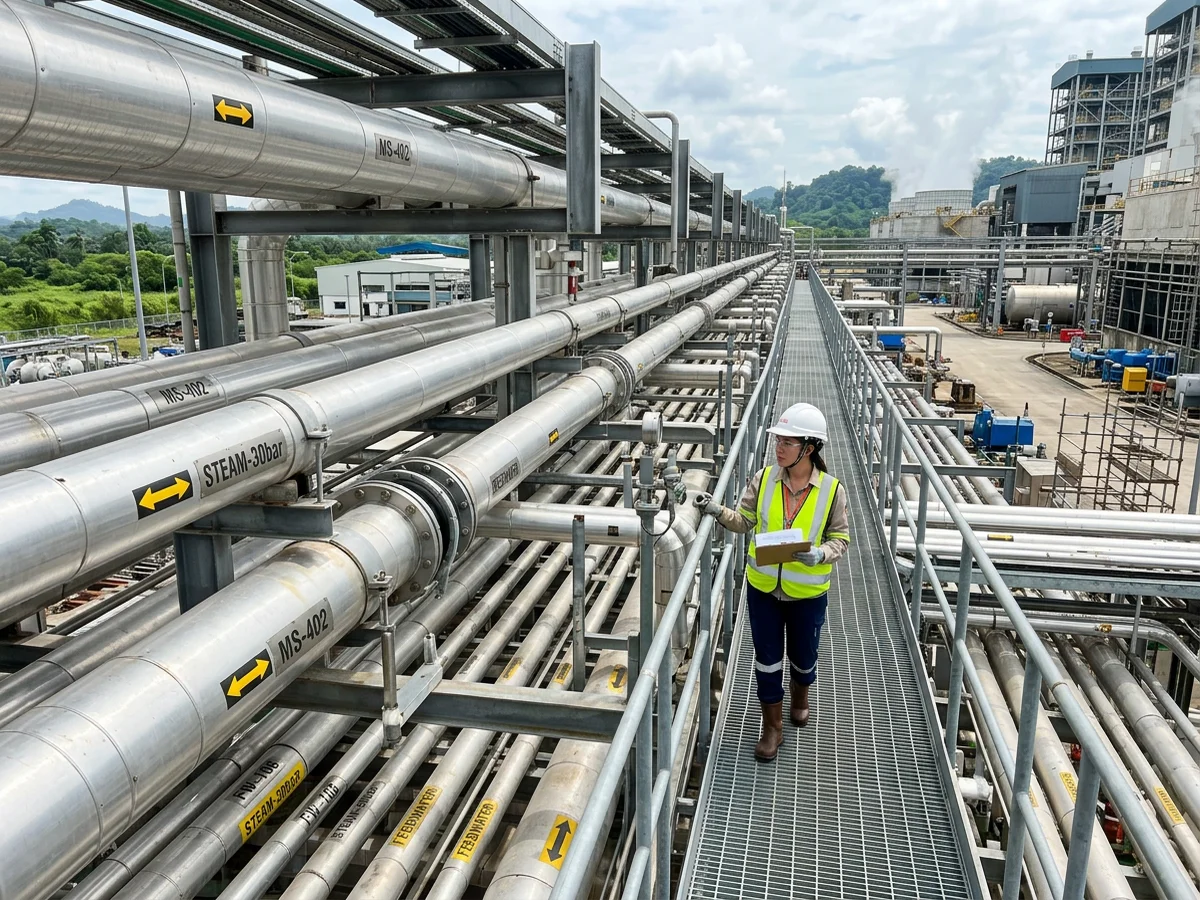

From P&ID to installed piping
Structured piping design workflow with built-in fabrication coordination.
Code coverage by service
Piping design and stress analysis capabilities across applicable codes.
| Service | ASME B31.3 | ASME B31.1 | EN 13480 | IBR |
|---|---|---|---|---|
| Process Piping | ||||
| Power Piping | ||||
| Utility Piping | ||||
| FRP/Plastic Piping | ||||
| Underground Piping |
Complete Piping Package —
Phosphoric Acid Complex
Full 3D piping design for a greenfield phosphoric acid plant. 2,400+ isometrics auto-extracted from SP3D model. Zero rework during construction.
