Equipment
Design
Pressure vessels, heat exchangers, reactors, columns, and storage tanks — engineered to international codes with fabrication and lining requirements designed in from the start.
Designed for the code. Designed for the shop floor.
Jasmino's equipment design team engineers pressure vessels, heat exchangers, reactors, columns, and storage tanks to ASME Section VIII, API 650/620, PED, IS 2825, and BS 5500 standards.
Because our designers sit in the same office as our fabricators, every design decision accounts for manufacturing reality — weld access, rolling capacity, head forming limits, and lining geometry requirements.
For equipment requiring rubber or plastic lining, our design engineers coordinate with the corrosion protection team from day one — ensuring nozzle projections, internal access, and surface geometry support flawless lining application.
We don't design equipment that someone else has to figure out how to build. We design it — then we build it ourselves.
Integrated Design-to-Fabrication
Engineered to code, designed for manufacturing
Each equipment type follows specific design codes and manufacturing constraints.
Pressure Vessels
Vertical and horizontal vessels, columns, and reactors. Design pressures up to 350 bar, temperatures to 550°C. FEA for complex geometries.
Heat Exchangers
Shell-and-tube, plate, air-cooled, and jacketed designs. Thermal rating, mechanical design, and vibration analysis under one roof.

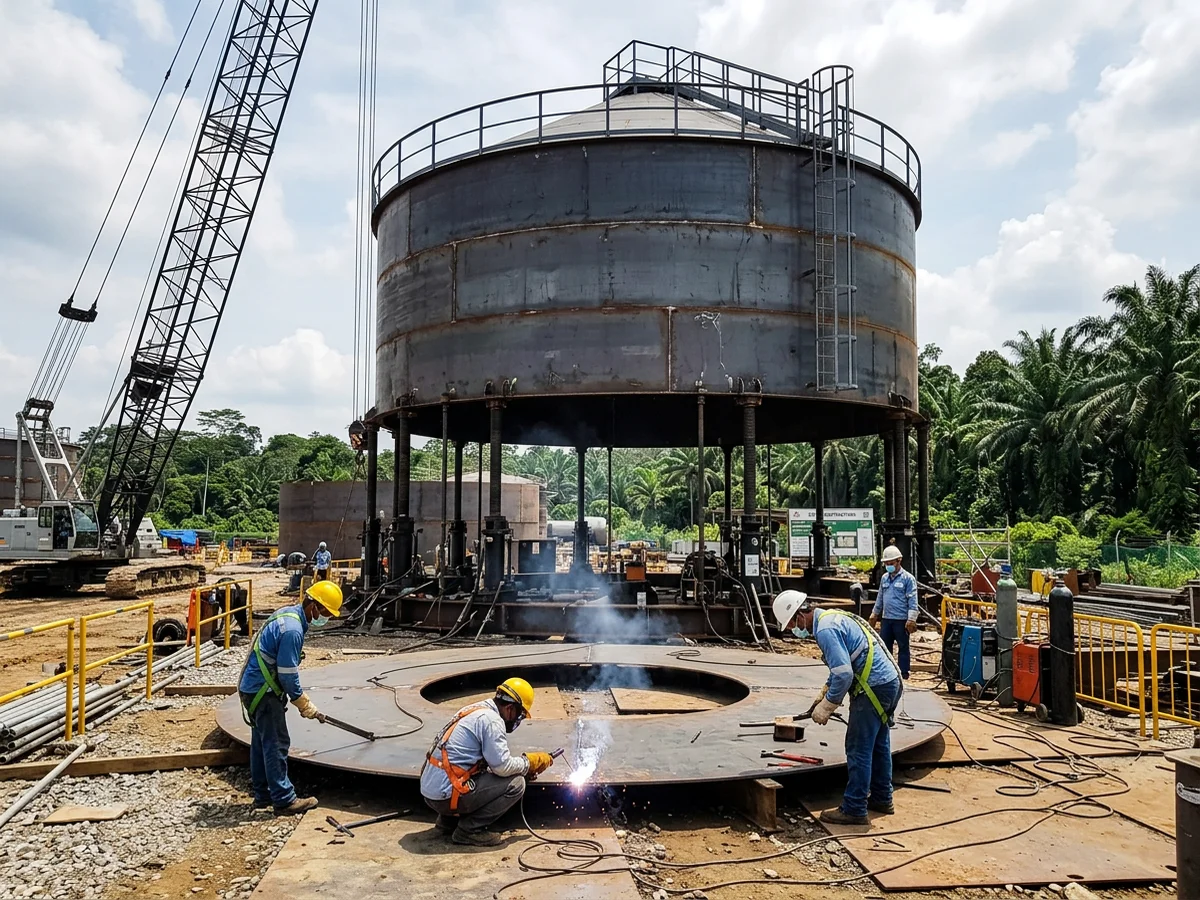

Storage Tanks
Atmospheric and low-pressure storage tanks. Fixed roof, floating roof, and cone roof configurations with seismic and wind analysis.

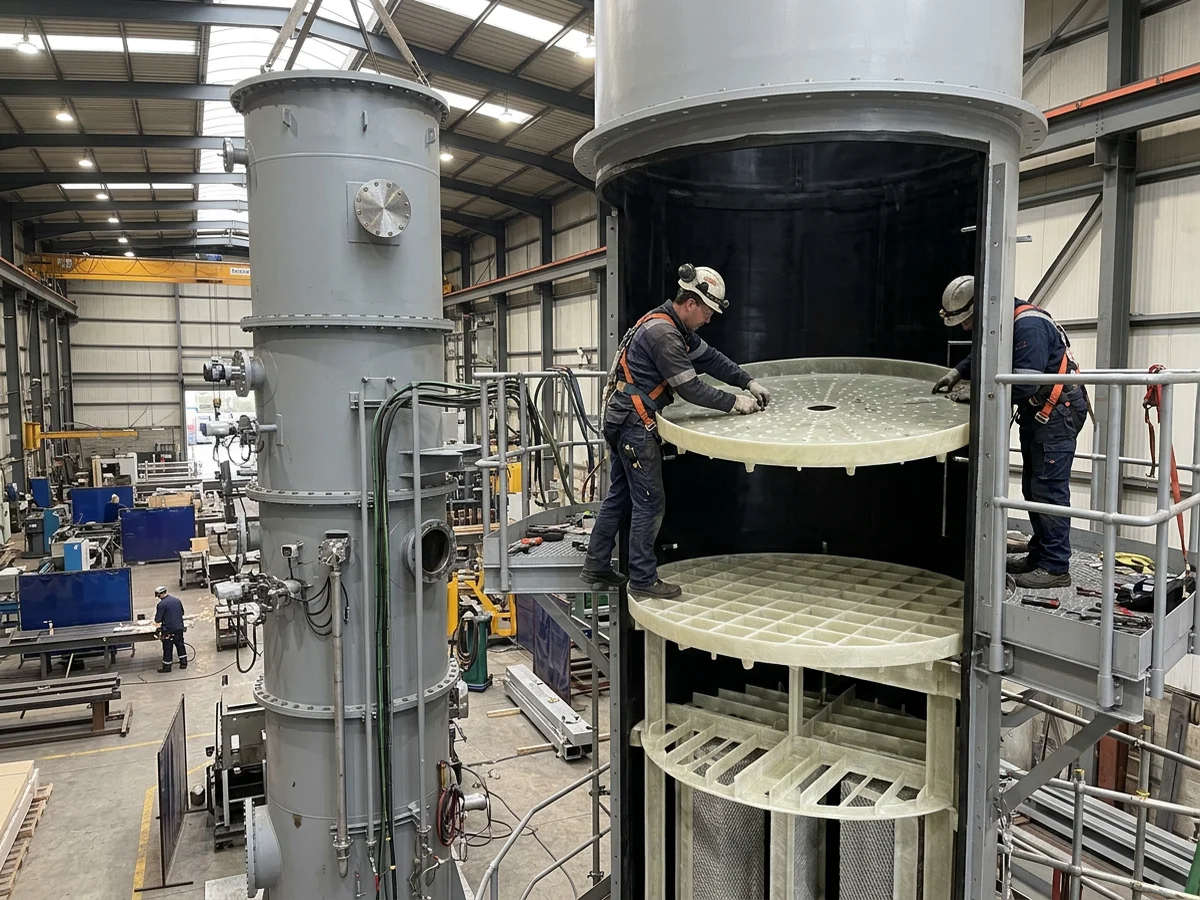

Reactors & Columns
Chemical reactors, distillation columns, absorption towers with internal distribution systems. Designed with lining access geometry.
From datasheet to shop-ready drawings
A structured design workflow with built-in manufacturing coordination.
Code coverage at a glance
Equipment types and applicable design codes handled in-house.
| Equipment Type | ASME VIII | API 650/620 | PED | IS 2825 |
|---|---|---|---|---|
| Pressure Vessels | ||||
| Heat Exchangers | ||||
| Storage Tanks | ||||
| Reactors | ||||
| Columns & Towers |

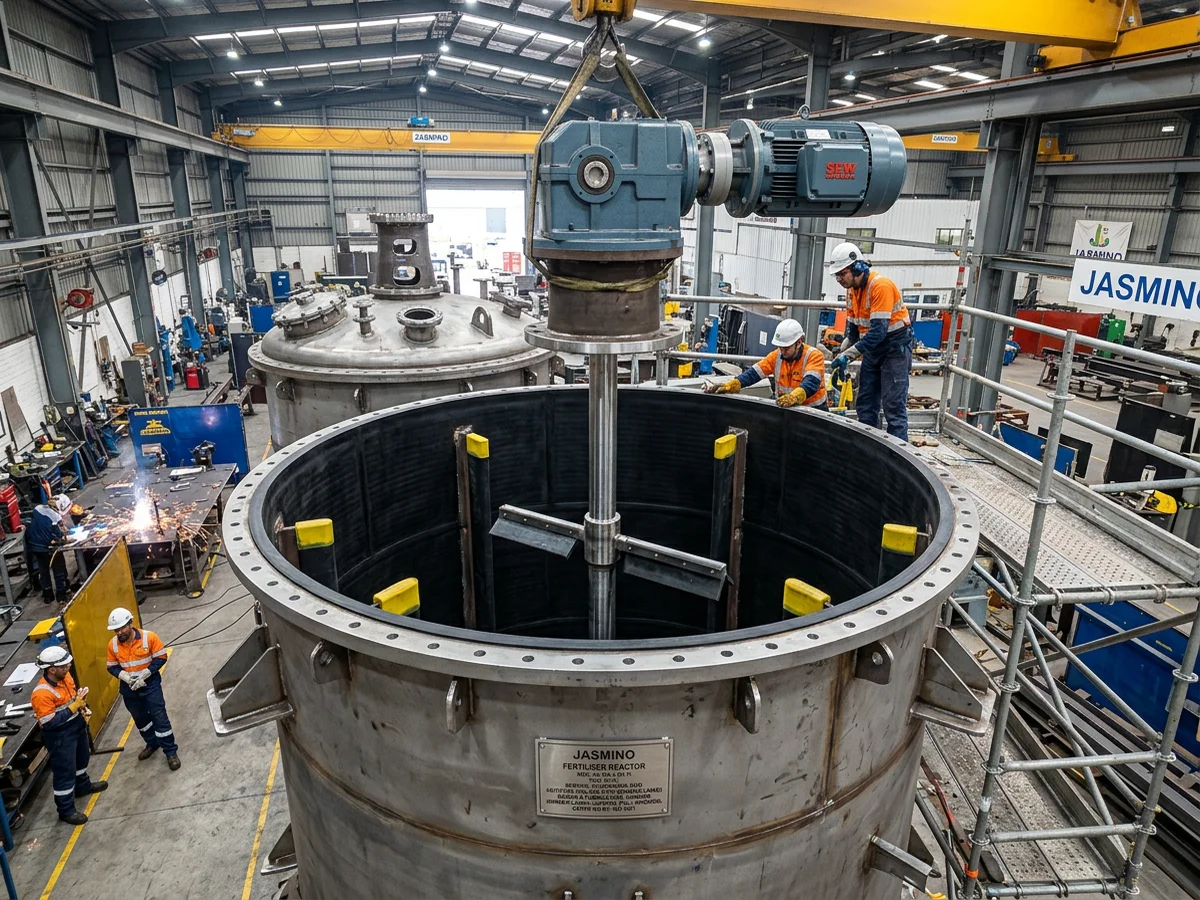

316L Reactor Cluster —
Design Through Lining
Four agitated reactors designed, fabricated, and rubber-lined for a phosphoric acid plant. Lining access geometry designed into the vessel from the first GA drawing.
